High-Capacity Air Suspension with the #4500 Boss Air Bellows: Perfect for Trailers & More
High-Capacity Air Suspension with the #4500 Boss Air Bellows: Perfect for Trailers & More
Couldn't load pickup availability
Share
Product Description

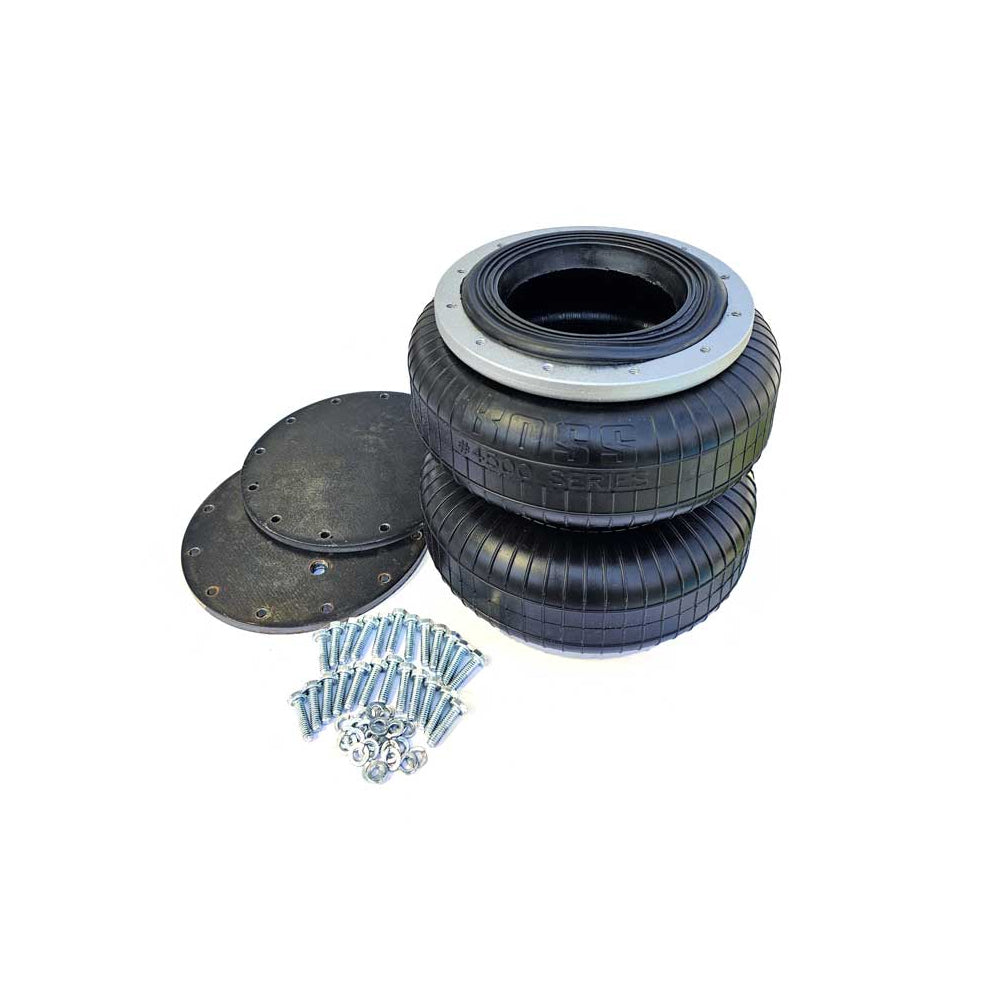

The 4500 Boss Air Suspension Air Bellows Complete is designed for high-performance applications that require heavy lifting and exceptional durability. With its 230mm diameter and 350mm height, this air bellow is perfect for large-scale applications, including airbag trailers and other high-lift systems, ensuring superior load-bearing capacity and stability.
Product Specifications:
- Max Diameter (when fully compressed): 230mm
- Max Height: 350mm
- Fully Compressed Height: 90mm with 8mm ends fitted
- Max Working Pressure: 0-160psi
- Test Pressure: 480psi
Included Components:
- 4500 Extreme Series Air Bellows
- Top and Bottom RAW Plates for easy and secure installation
- 24 Bolts to ensure a firm connection
- 24 Spring Washers for enhanced durability and vibration resistance
Key Features:
- Heavy-Duty Design: The #4500 Boss Air Bellows is engineered to easily handle larger, more demanding applications. It offers high lifting capacity and stability.
- Superior Size and Capacity: At 230 mm in diameter and 350mm in height, it's the ideal choice for industries requiring powerful suspension support for heavy loads.
- High-Pressure Resistance: Designed to withstand test pressures up to 480psi and working pressures up to 160psi, ensuring reliable performance in extreme conditions.
- Complete Installation Kit: This air bellow includes all the components needed for quick and efficient installation, including top and bottom RAW plates, 24 bolts, and spring washers for added protection.
- Compact Yet Powerful: Fully compressed to 90mm, it offers excellent space efficiency while providing substantial lift when needed.
Perfect for large-scale suspension needs
The 4500 Boss Air Suspension Air Bellows Complete is built to deliver powerful, reliable performance in demanding applications. Whether you're outfitting an airbag trailer or other heavy-lift equipment, this air suspension solution provides the durability and strength necessary for the toughest jobs.
