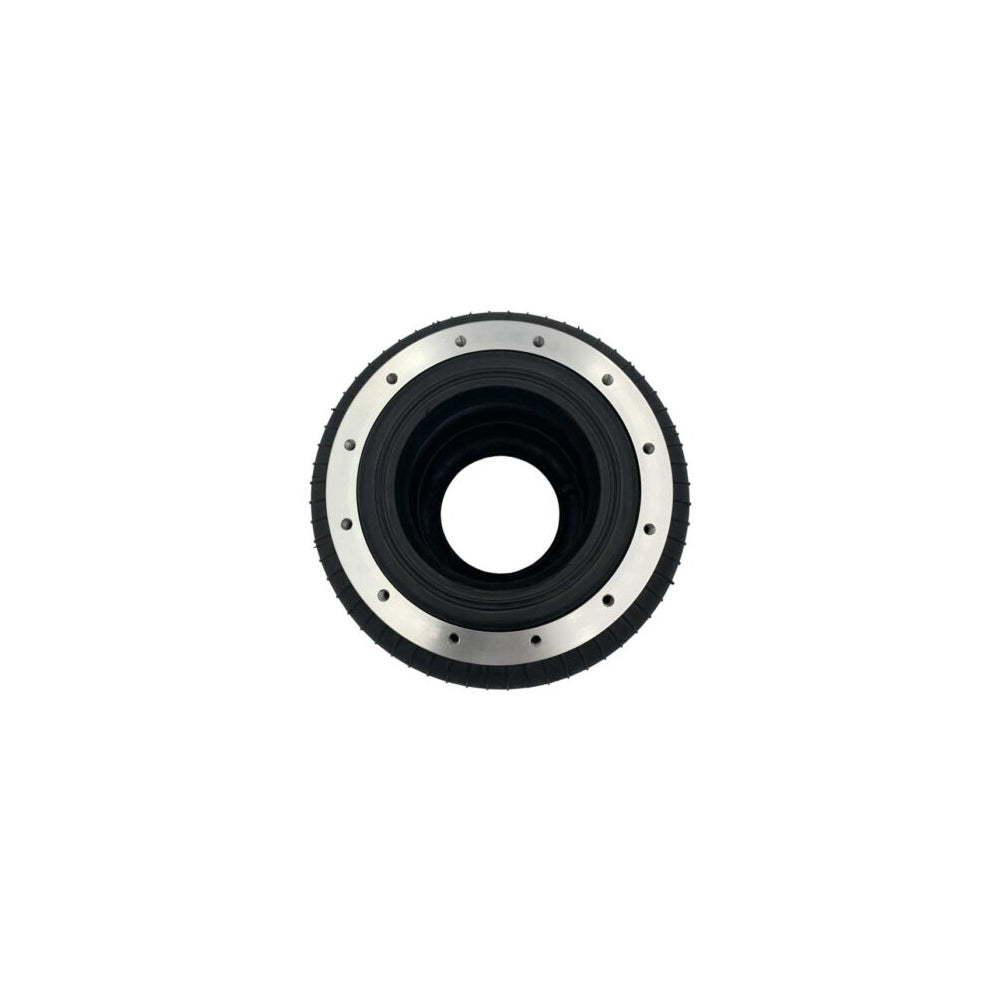

The 4500 Boss Air Suspension Air Bellows is engineered for heavy-duty applications. It offers powerful lifting capacity and exceptional durability. With a large 230mm diameter and 350mm height, this air bellow is ideal for use in larger systems like airbag trailers or other high-lift applications that demand robust suspension support.
Product Specifications:
Max Diameter (when fully compressed): 230mm
Max Height: 350mm
Fully Compressed Height: 90mm with 8mm ends fitted
Max Working Pressure: 0-160psi
Test Pressure: 480psi
Key Features:
Heavy-Duty Performance: The #4500 Boss Air Bellows is designed for larger, high-lift applications and offers excellent capacity and strength.
Optimal Size: At 230 mm in diameter and 350 mm in height, this bellows delivers outstanding support for heavier loads.
High-Pressure Resistance: Built to withstand up to 480psi in test pressure and capable of handling up to 160psi during normal operation for reliable performance.
Compact and Efficient:A fully compressed height of 90mm ensures space efficiency while providing the necessary lift when deployed.
Elevate Your Load with the 4500 Boss Air Suspension Air Bellows
The 4500 Boss Air Suspension Air Bellows are perfect for heavy-duty lifting and suspension needs, making them a must-have for industries that require reliable, high-capacity airbag solutions. Whether for airbag trailers or large machinery, these airbellows deliver the performance and strength needed to handle even the toughest tasks.
