Air Bellows Bag 2503 Complete Kit | Heavy Duty Air Suspension System | Load Assist & Improved Ride Stability

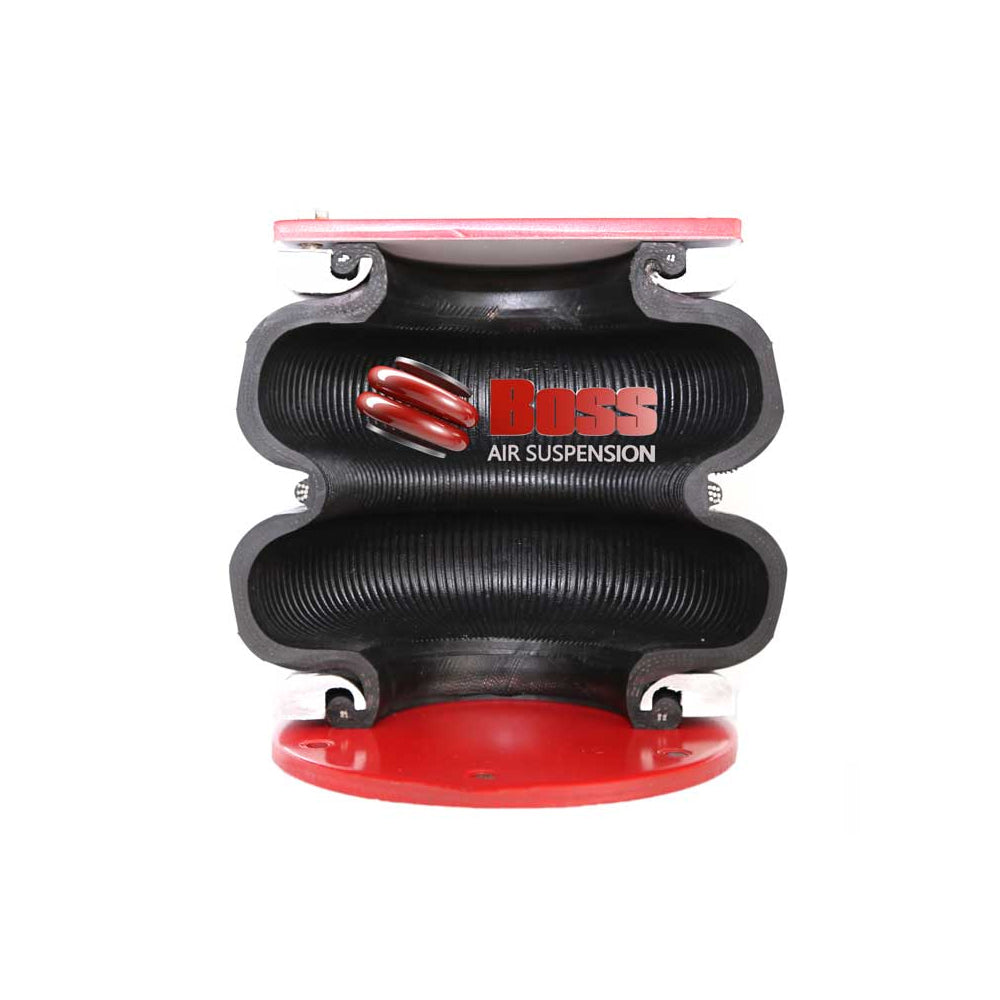

The 2503 BOSS Complete Triple Airbag is a premium solution for automotive suspension systems and "Bag over" applications. With a robust 2500lb (1136kg) capacity at 100 psi, this airbag is engineered for superior performance, durability, and reliability, even in demanding environments. Whether used as a stand-alone airbag in suspension systems or combination with other components, the 2503 BOSS Complete Triple Airbag is designed to deliver exceptional support and stability.

Product Specifications:

• Capacity: 2500lb (1136kg) @ 100psi
• Max Diameter (when fully compressed): 155mm
• Max Height: 335mm
• Fully Compressed Height: 85mm with 6mm ends fitted
• Max Working Pressure: 0-160psi
• Test Pressure: 480psi
• Burst Pressure: 1000psi

Included Components:

• 2500lb Extreme Series Triple Airbag
• Top and Bottom Plate for added structural support
• 12 Countersunk Stainless Bolts for secure and easy installation

Key Features:

• Heavy-Duty Capacity: The 2503 BOSS Airbag is built to support up to 2500lb (1136kg) at 100psi, making it a robust choice for heavier loads and demanding applications.
• Versatile Application: Suitable for both "Bag over" applications and as a stand-alone airbag in automotive suspension systems, offering unmatched flexibility.
• High-Pressure Resistance: Designed to handle a test pressure of 480psi and burst pressure of 1000psi, ensuring long-lasting durability and superior performance in high-stress conditions.
• Optimized Size: With a maximum diameter of 155mm and a maximum height of 335mm, this airbag offers an ideal balance of space efficiency and lifting power.
• Complete Installation Kit: This kit includes all necessary components for quick and secure installation, including top and bottom plates and stainless bolts.

Elevate Your Suspension

The 2503 BOSS Complete Triple Airbag is ideal for automotive suspension systems. It provides optimal load support, enhanced stability, and exceptional durability. Whether you're upgrading your vehicle's suspension or working on custom projects, this airbag ensures consistent performance and reliability under pressure.
