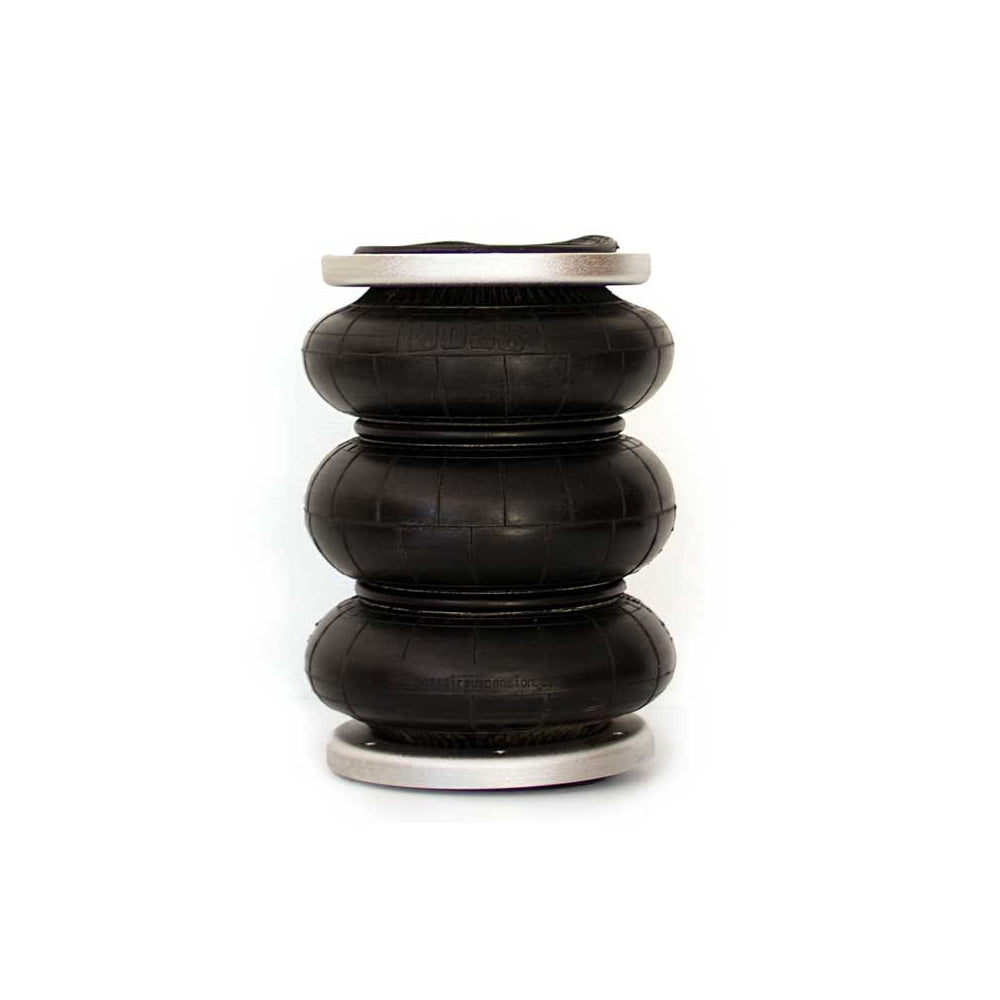

Triple Air Bellows Bag 2603 | Heavy Duty Air Suspension Replacement | High Load Capacity | Bare Unit
Triple Air Bellows Bag 2603 | Heavy Duty Air Suspension Replacement | High Load Capacity | Bare Unit
Couldn't load pickup availability
Share

Product Description
The 2603 Triple Air Bellows Bag is a high-performance airbag for off-road vehicles and 4WD coil replacements. It offers a genuine 10" (255mm) travel and an extended height of approximately 340mm. This bag provides enhanced suspension performance for rugged terrains and demanding off-road situations. It's ideal for anyone looking to replace traditional coil springs with air suspension for better load handling and vehicle stability.
Product Specifications:
- Capacity: 2600lb (1181kg) @ 100psi
- Max Diameter (when fully compressed): 190mm
- Max Height: 329mm
- Fully Compressed Height: 75mm with 6mm ends fitted
- Max Working Pressure: 0-160psi
- Test Pressure: 480psi
- Burst Pressure: 1000psi
Key Features:
- Extended Travel: The 2603 Triple Air Bellows features one more bellow than the 2600, delivering a genuine 10" (255mm) of travel. This is ideal for off-road conditions and vehicles that require superior suspension articulation.
- High Capacity: At 100 psi, this airbag can support a 2600-lb (1181-kg) capacity. It can withstand heavy loads while maintaining optimal vehicle handling and stability.<
- Enhanced Off-Road Performance: Perfect for coil replacements in 4WD vehicles and other off-road applications, the 2603 ensures a smoother, more controlled ride even on uneven surfaces.
- Durability & Pressure Resistance: The airbag is built to endure a test pressure of 480psi and a burst pressure of 1000psi, ensuring long-lasting reliability and safety under extreme conditions.
- Compact Yet Powerful: Despite offering significant travel, the bag remains compact, with a maximum diameter of 190mm when fully compressed. This makes it suitable for various vehicle types.
Enhance Your Vehicle's Stability and Strength with the 2603 Triple Air Bellows Bag
The #2603 Triple Air Bellows Bag is engineered for heavy-duty performance in off-road and 4WD applications. It offers increased travel and superior load-bearing capacity. Whether you replace coils for a smoother ride or customize your suspension for rugged terrain, this airbag ensures you get the stability, performance, and durability you need.
